CNC Trainer Lathe Machine Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-CTM-10771

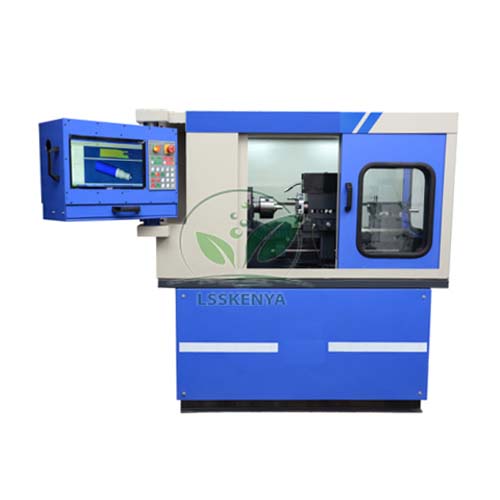

CNC Trainer Lathe Machine
Specification:-
Swing Over Bed: 150 mm
Max. Turning Dia: 55 mm
Max. Turning Length: 100 mm
Std. Turning Dia.: 50 mm
Turret:-
Tool Cross Section: 16 x 16
Turret Type: Linear
Max. Boring Bar Dia.: 32 mm
No. Of Stations: 2
Axes Slides:-
Rapid Traverse X-Axis: 15 m/min.
X-Axis Stroke: 150 mm
Z-Axis Stroke: 100 mm
X-axis Guide Ways: LM
Rapid Traverse Z-Axis: 15 m/min.
Z-axis Guide Ways: LM
Main Spindle:-
Bore Through Spindle: 35 mm
Bar Capacity: 12 mm
Chuck Size: 80 mm
Spindle Drive:-
Spindle Motor Power: 1.5 HP
Speed Range (RPM): 4000
Accuracy:-
Position Accuracy: 0.015 mm
Repeatability: ±0.003 mm
Machine Dimensions:-
Dimension (L x B x H):- 1250 x 850 x 1650
Weight (Approx.):- 1000 kg
