CNC Lathe Machine Table Manufacturer,Supplier and Exporter in Kenya

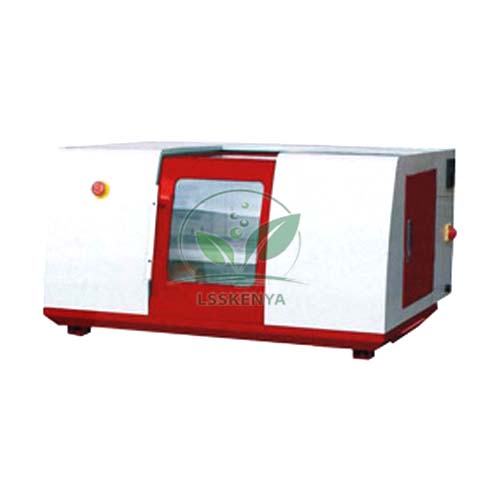

CNC Lathe Machine Table

Description:-

With a highly commendable functionality, longer functional life, high resistance to corrosion and market leading rate.

The offered CNC Lathe Machine table is known to be one of the best that is available in the market.

It is highly demanded in the market.

Specification:-

Tool turret: 4 Station

Swing over bed: 200mm (7.9”)

Spindle speed: 100-3000 rpm

Max. Moving Speed of X/Z Axes: 2m/min

X/Z axes feeding speed: 500mm/min

Z axes max. travel: 250mm(13”)

Machine size (L x W x H): 1000 X 780 X 565 mm

G.W/ N.W.: 180/140 kg

X-axes max. travel: 150mm(7”)

Swing over carriage: 100mm (4”)

Tool turret angle: 360 degree

Tailstock travel: 50mm (2”)

Bed width: 100mm (4”)

Repeat positioning precision: 0.01mm

X/Z axes motor: 1.35Nm

Turret return orientation precision: 0.005mm

Main motor power: 500w

Positioning precision: 0.015mm

Center distance: 460mm (14”)
