CNC Milling Machine Floor Model Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-CTM-10767

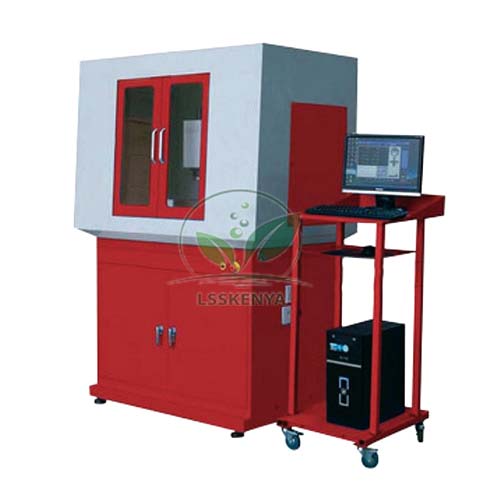

CNC Milling Machine Floor Model
Specification:-
Max. Loading of Worktable: 35 kg
Table Travel x-axes: 280mm (11”)
Drilling Capacity: 16mm (0.6”)
Worktable Size : 500 x 160mm (22” x 6.3”)
Worktable T-Slot Size: 12mm (0.5”)
No. of T-Slot on Table : 3
Table Travel z-axes: 270mm (11”)
X Axes Feeding Motor Power: 4Nm
Y Axes Feeding Motor Power: 4Nm
X/ Y/ Z Axes Max. Moving Speed: 2m/min
X/ Y/ Z Axes Feeding Speed : 500mm/min
Throat: 232mm (5.9”)
Position Precision: 0.015mm
Repeat Positioning Precision: 001mm
Spindle Speed: 100-5000rpm
Spindle Motor: 1kw
Machine Size (L x W x H) : 1280 x 895 x 1845mm
Packing Size (L x W x H) : 1420 x 1060 x 2035mm
G.W./N.W. : 570/510 kg
Z Axes Feeding Motor Power: 6Nm
Table Travel y-axes: 120mm (4.7”)
