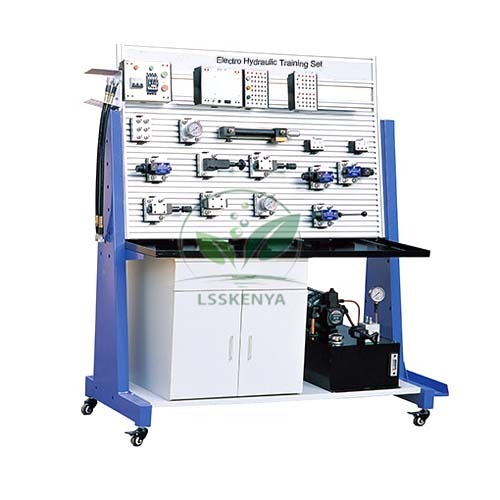

Electro-Hydraulic Trainer
Specification:-
Hydraulic Components
Hydraulic Power pack with following features
Having non-return valve, pressure relief valve
Operating pressure 40 bar approx., Flow rate 4-8lpm approx.
Geared pump coupled with induction motor 2HP 220V AC, 50 Hz, and mounted externally over the tank with anti-vibration pads
Hydraulic Tank capacity 20 liters
Different type of valves
4/3 Double solenoid valve AC operated
4/2 Single solenoid valve AC operated
4/3 Way hand lever valve (Manual)
Flow control valve and Pressure reducing valve (Manual)
Pressure gauges (glycerin filled) to measure the pressure at Input Line
Hydraulic Cylinders - 2nos.
Pressure gauges 0-1500Psi - 3nos.
Reduced pressure line at Cylinder 1
Reduced pressure line at Cylinder 2
Double acting cylinder (Stroke length 100mm & diameter 32mm)
Piston rod: Chrome plated and hardened
Objective:-
Extension and retraction of double acting hydraulic cylinder in a different way
Study of different type of hydraulic components
Control the direction of hydraulic motor using double solenoid valve manually and using micro controller
Cylinder moment using solenoid valve can be done automatically using micro controller
Using hand lever valve and flow control valve
Using single solenoid valve and flow control valve
Hydraulic pipe for fittings:-
Connection type 3/8", Length 600mm - 15nos
Connection type 3/8", Length 1000mm - 2nos
Hydraulic motor:-
220 V AC operated
8051 CPU, Memory 64kB Flash
Line indicator
Type: Gear motor and Bi-directional
Electronic Controller
Single solenoid control switch (Manual and Automatic)
Push buttons for manual control for actuators I, II, & III
USB cable connector
DOL starter start/stop button for Induction motor
Double solenoid control switch (Manual and Automatic)
Power requirement: 220VAC +10%, 50Hz
Weight: -
65Kg Approx. (Main Control Unit)
Dimensions (mm): 900(L) x 380(B) x 670(H)
70Kg Approx. (Hydraulic Power Pack)
