CNC Lathe Machine Floor Model Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-CTM-10769

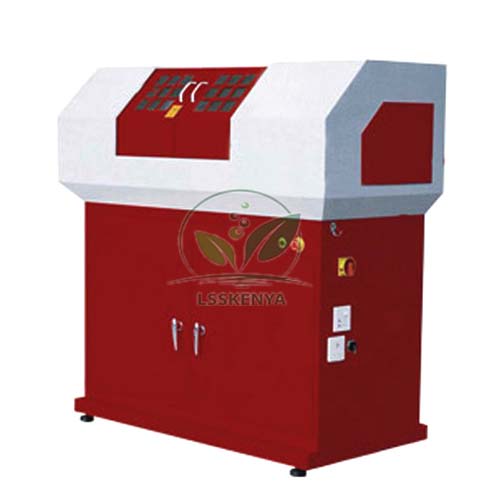

CNC Lathe Machine Floor Model
Specification:-
Swing over carriage : 110mm (4.3”)
Max. Moving Speed of X/Z Axes : 2m/min
Swing over bed : 250mm (10”)
Z axes max. travel : 320mm (13")
X axes max. travel : 180mm (7")
Packing size (L x W x H) : 1630 x 1070 x 1685mm
G.W/ N.W. : 530/ 440kg
X/Z axes motor : 4Nm
Tool turret : 4 station
Turret return orientation precision : 0.005mm
X/Z axes feeding speed : 500mm/min
Main motor power : 1kw
Positioning precision : 0.015mm
Repeat positioning precision : 0.01mm
Center distance : 450mm (18”)
Bed width : 135mm (5.3”)
Spindle speed : 100-3000 rpm
Machine size (L x W x H) : 1460 x 760 x 1450mm
Tool turret angle : 360 degree
Tailstock travel : 50mm(2”)
