Advanced School Microscope Manufacturer,Supplier and Exporter in Kenya

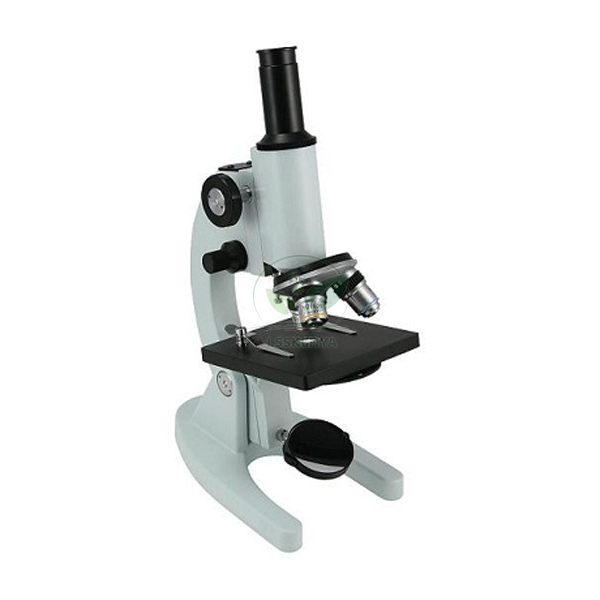

Advanced School Microscope

Product Code : LSK-M-11357

Body : Monocular Tube inclinable upto 90°, Mechanical Tube length 160mm.
Stage : Graduated mechanical stage size 120x120mm with convenient adjustment for slide manipulation upto 40x75mm.
Focussing : Separate knobs are provided for coarse and fine focussing adjustments. Coarse adjustment can be made through Rack-Pinion and fine movement by screw-lever mechanism having a graduated knob on the right side.
Safety Device : Adjustable down movement stopper for preventing accidental damage to slides.
Stand : Stable and Robust, assembled from Aluminium DIE-CAST parts.
Nosepiece : Quadruple revolving nosepiece with positive centering & click stops.
Condenser : Bright field, Abbe N.A. 1.25 with iris diaphragm and swing out filter holder can be moved through rack-pinion. The condenser Unit incorporates high efficiency optical system for optimum utilization of light from low to high magnification.
Illumination : Plano-Concave Mirror diameter 50mm mounted on gimbal mount.
Optional : Coaxial Mechanical Stage, Wooden Storing Cabinet with Lock and Key, Draw Tube, Spare Objectives, Sub-Stage Lamp for 220/110V (with extra charges).
Eyepieces : Huygenian 5x, 6x, 10x, 15x (any two) or Wide Field 10x.
Accessories : Vinyl Cover, Duster, Cleaning Brush, Filter.
Objectives : Achromatic 10x, 40x SL and 100x SL Oil Immersion.
Packing : In full mould Styrofoam/Thermocol Container.
