Dimension Saw Machine Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-WWPT-10722

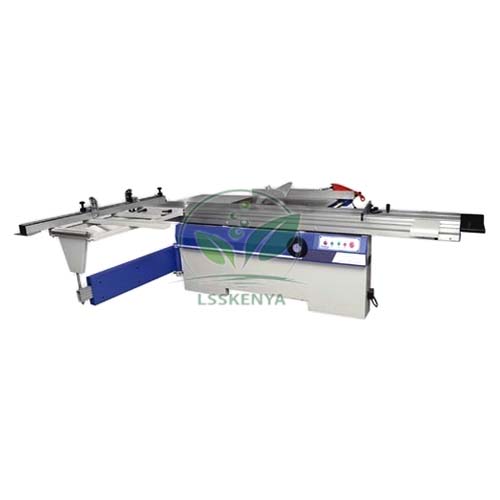

Dimension Saw Machine
Description:-
Heavy-duty cross-cut fence with the quick release.
Easy-glide sliding table.
Heavy-duty saw carriage securely seated in the large cast-iron cradle for maximum support.
Handwheel adjustment to the height of the blade.
Manual adjustments for the scorer.
Blade tilting angle show by simple index.
Simple overhead saw guard.
Handwheel adjustment to the tilting of the blades.
Manual scoring saw +/- direction adjustment.
|
Dimension of sliding table |
3000 x 320mm |
|
Gross cut capacity |
3000 |
|
Width of cut between saw blade and rip fence |
1250mm |
|
Saw blade diameter |
300mm
(250-300mm) |
|
Height of cut (300mm) |
80mm |
|
Speed of main saw spindle |
4000/6000rpm |
|
Main spindle diameter |
30mm |
|
Tilting saw blade (degree) |
0-45 |
|
Main motor |
3kw |
|
Scoring saw blade diameter |
120mm |
|
Speed of scoring saw blade |
7000-8000
rpm/min |
|
Scoring saw diameter |
20mm |
|
Scoring motor |
1.1kw |
