High Precision Surface Grinder Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-WEAWLM-10684

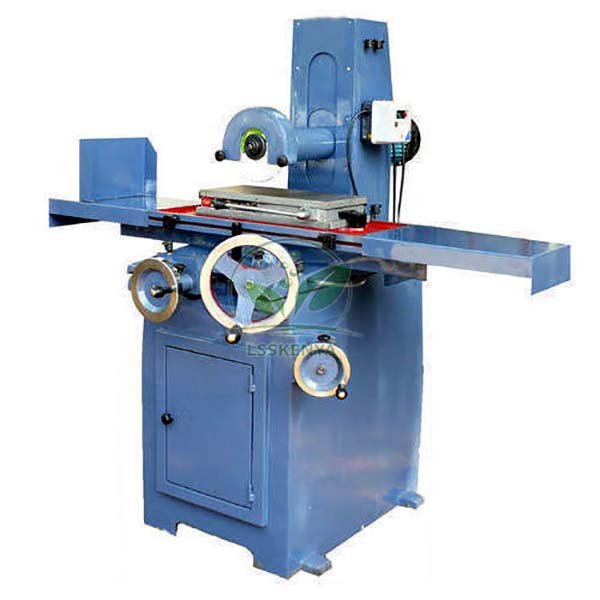

High Precision Surface Grinder
These machines have the ability to work efficiently even in the very low-pressure situation.
High Precision Surface Grinders is manufactured from quality tested raw material.
Our high precision surface grinders are stringently checked on all types of quality parameters prior to delivery the customer.
Vertical feed/ crossfeed graduation - 0.01 mm
Crossfeed graduation - 0.05 mm
Spindle speed - 2800 rpm
Electric motor recommended - 0.75 kW- 1 hp
Weight of machine (approx. ) - 800 kgs
Working surface of the table - 225 x 450 mm
Maximum height from table to grinding wheel - 275 mm
Size of grinding wheel (Dia x width x bore) - 200 x 13 x 31.75 mm
