Parallel Beam Light Source Manufacturer,Supplier and Exporter in India
Product Code : LSK-PL-10348

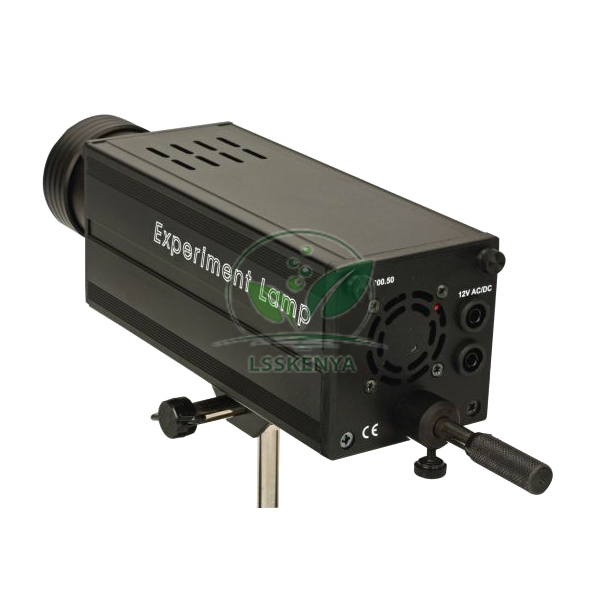

The Lamp is supplied with a bayonet socket for standard, clear, incandescent 12V/35W lamps and a two pole socket for halogen lamps rated at 12V/50W.
This lamp emits a bright, straight beam of light which is ideal for many types of experiments and demonstrations.
Both focus adjustment and the horizontal placement of the lamp socket within the lamp housing can be done by displacing or turning the handle at the back of the lamp.
Mass: 1.2 kg.
The unit is supplied with safety jack connectors for attaching the power supply, which should be 12V AC/DC 4.2 A, and comes with a 10mm diameter mounting tap appropriate for use with an optical bench or with a laboratory stand.
A 50W halogen lamp is supplied.
Dimensions (L x W x H): 310 x 76 x 105 mm (excluding mounting tap).
During operation the lamp housing is ventilated by means of a built-in ventilator, so that the surface temperature of the housing does not get too hot.
