Joulemeter, Low Voltage Manufacturer,Supplier and Exporter in Kenya

Joulemeter, Low Voltage

Product Code : LSK-PL-10282

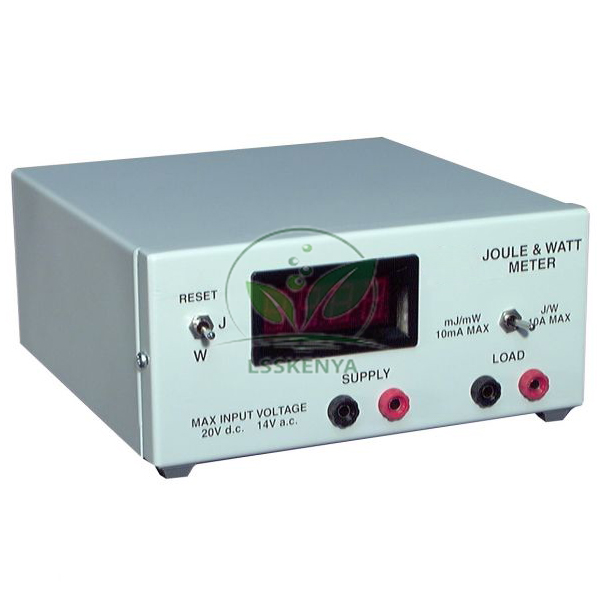

This Lsskenya meter is capable of measuring energies from 1 mJ to 9999 J or power from 1 mW to 200 W in AC or DC circuits. Two ranges selected by a switch labelled mJ/mW and J/W are available. The auto-ranging four digit display will give direct readings of energy or power. The maximum current input is 10 A. All electrical connections are via 4 mm sockets.

Max load current: J/W range - 10 A, mJ/mW range - 10 mA
Max energies: J range - 9999 J, mJ range - 9999 mJ
Supply voltage: 20 V DC, 14 V AC (rms)
Max power: W range - 200 W
Input resistance: (No load) 2MΩ
