Pressure Measurement Bench Manufacturer,Supplier and Exporter in India
Product Code : LSK-FM-10449
Pressure Measurement Bench enables students to fully investigate and compare the operation and characteristics of inclined and U-tube manometers, and Bourdon-type vacuum and pressure gauges. It also includes a separate Bourdon gauge with dead-weight calibration apparatus, enabling clear observation of the Bourdon tube mechanism.
Manometers and Bourdon gauges are fundamental pressure-measuring devices. They are intrinsic parts of more complex measuring instruments, such as pneumatic comparators and flow indicators. It is important therefore that students fully understand their operation, characteristics and principles of calibration.

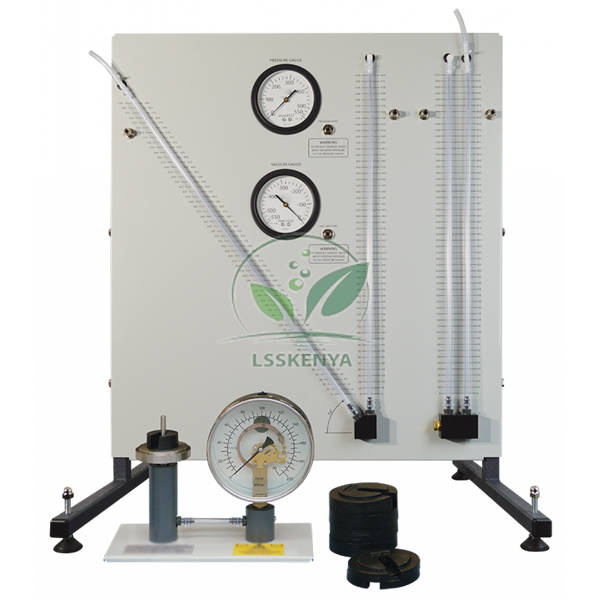

The apparatus consists of two units:
A Bourdon pressure gauge calibration unit
A manometers and gauges unit
The manometers and gauges unit is a framed structure with a backboard, holding a:
vertical U-tube manometer,
Bourdon gauge for measuring vacuums,
U-tube manometer with an inclined limb,
Bourdon gauge for measuring positive pressure, and
syringe assembly for pressurising and reducing pressure in the measurement devices.
Each gauge and manometer has a delivery point to connect to the syringe using plastic tubing (included). All connections are push-fit, and T-pieces are provided to enable two instruments to be connected to one point. The Bourdon pressure gauge calibration unit consists of a piston, which is free to move vertically, in a close-fitting cylinder. A transparent, flexible hose connects the cylinder to the Bourdon pressure gauge. The gauge and cylinder are mounted on a common flat base.
The apparatus is manufactured using materials and finishes carefully chosen to give the fullest protection against corrosion.
The internal mechanism of the gauge is clearly visible through the transparent dial. During test, calibration weights are placed onto the loading platform, which is an integral part of the piston assembly. All air is expelled from the system through a purge hole in the upper part of the cylinder.
