Ballistic Galvanometer Manufacturer,Supplier and Exporter in Kenya

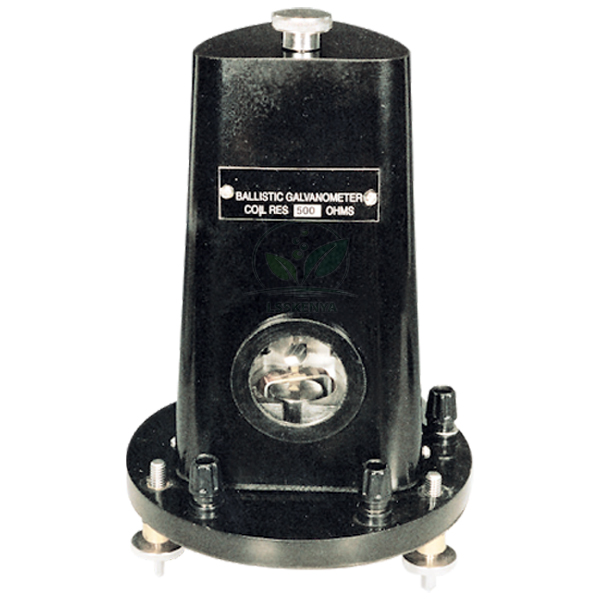

Ballistic Galvanometer

Product Code : LSK-LM-11130

This galvanometer has been designed for very low current measurement.
Suspension and spring are made of special alloy to provide high degree of sensitivity to the movement.
Coil with mirror suspended between the long suspension at the upper end and a spring at the lower end.
Leveling screws for balancing the coil.
Movement housed in a bakelite case.


Resistance

100 Ω

500 Ω

Time Period

12sec

12sec

Charge Sensitivity

300mm/µC

600mm/µC

Current Sensitivity

1000mm/µA

1400mm/µA

Critical Damping Resistance

2000 Ω

3500 Ω
