Field CBR Equipment Manufacturer,Supplier and Exporter in Kenya
Product Code : LSK-SM-10648

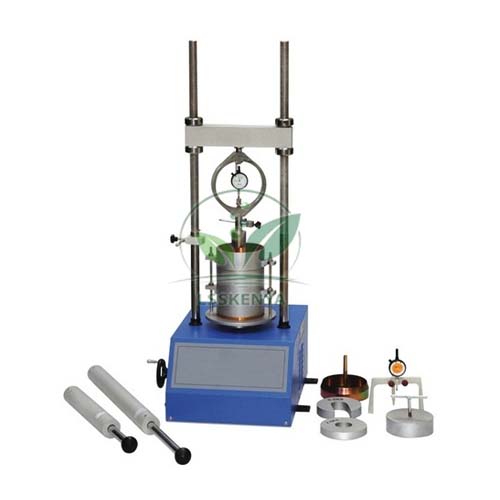

Field CBR Equipment
Measuring in soil bearing capacity.
Field CBR Jack 50kN capacity; weight 8.5 kg; total height: 254mm.
1 Proving Ring, 10 kN capacity.
1 Ball Seating Attachment.
1 Bridge Support.
1 Proving Ring, 28 kN capacity.
1 Bracket and Adapter.
1 Penetration Dial Indicator.
Proving Ring, 50kN capacity.
Field Penetration Piston 50 mm Dia. threaded at the upper end.
1 Slotted (4.54 kg) Surcharge Weight. 215 mm to 250 mm dia with 53 mm dia slot.
Extension Rod machined from steel tubing, consisting of 2 lengths 5 cm., 2 lengths 10 cm., 1 length 30 cm., 1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston.
1 Circular 4.54 kg Surcharge Weight. 250 mm dia with 53 mm dia central hole.
1 Slotted (9.07 kg) Surcharge Weight 215 mm to 250 mm dia with 53 dia slot.
Dial gauge support of seamless pipe construction, 30 cm high and 45 cm wide at the base, with a quick release screw type clamp capable of sliding and locking anywhere along the 2-meter length of the bridge.
Dial gauge 0.01mm x 25mm.
